AUTOMATION

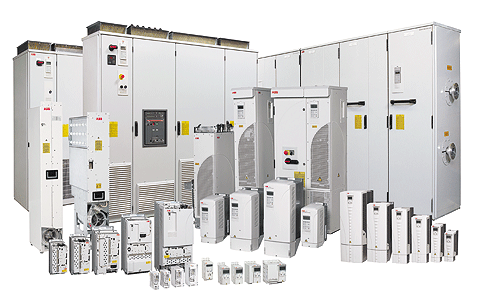

AC DRIVE :

  • Category: V/F,Vector and Direct Torque Control (DTC)
  • Incoming Voltage: 200-230 VAC( +10% -15%), 380-480VAC (+10% -15%)
  • Incoming Frequency: 50/60 Hz, +/-5%
  • Power Rating: 0.5 -450HP in V/f mode and 1MW in DTC mode
  • Braking torque: 100% upto 15HP (Built in)
  • Ambient: 0-45 Deg C ( 0-40 Deg C with Ip40 Cover)
  • Communication: Profibus DP, DeviceNet, CANopen, Modbus, ControlNet

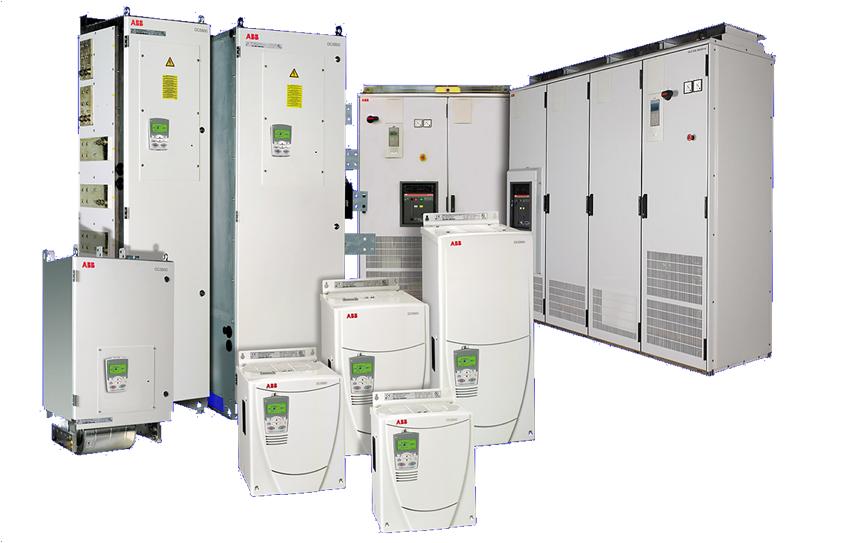

DC Drives :

  • Incoming Voltage: 230- 1000VAC
  • Incoming Frequency: 50/60Hz (Variation: 48-62Hz)
  • Outgoing Amperes:25-5150A DC
  • Ambient: 0-50 Deg C
  • Configuration: Non Regenerative and Regenerative
  • Communication: Profibus DP, DeviceNet, CANopen Modbus, ControlNet, Ethernet.

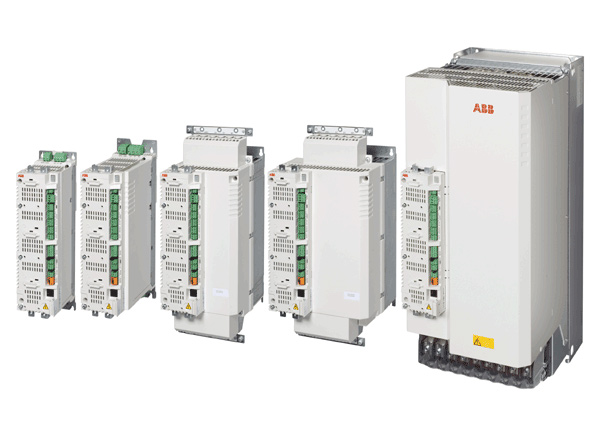

Servo Drive :

  • Servo Drive range : .5KW to 150KW
  • Servo AC motor Range: 0.3 -40Nm , 4000RPM
  • Feedback: Absolute encoder Resolver    AC Servo Drive: 230- 400V +/-10%, 50/60 Hz
  • Communication: Profibus DP, DeviceNet, CANopen, Modbus, ControlNet
  •

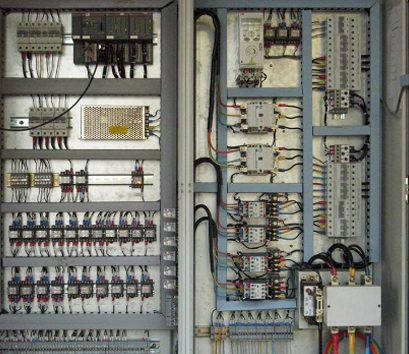

PLC & HMI/SCADA :

    PLC
  • User Logic Memeory: 34K Bytes to 16 Mbytes
  • Servo AC motor Range: 0.3 -40Nm , 4000RPM
  • Foundation Field bus OPC server/ Client Ethernet


HMI :

  • Touch Screen and Key Pad Version: 3 inch to 14 Inch in monochrome and color version.
  • Communication: Profibus DPDeviceNet
  • CANopen Modbus ControlNet Ethernet
  • Human Interface Package
  • Tags: 50 Tags to 35000 Tags with Client/ Server Schem
    Communication: Modbus (TCP-IP) Ethernet.

    SCADA:
    SCADA Development for process applications using DCS/ PLC's for supervisory and regulatory controls. We offer  software along with DCS/ PLCs for supervisory and regulatory controls for any process control applications from concept to commissioning and after sales support.

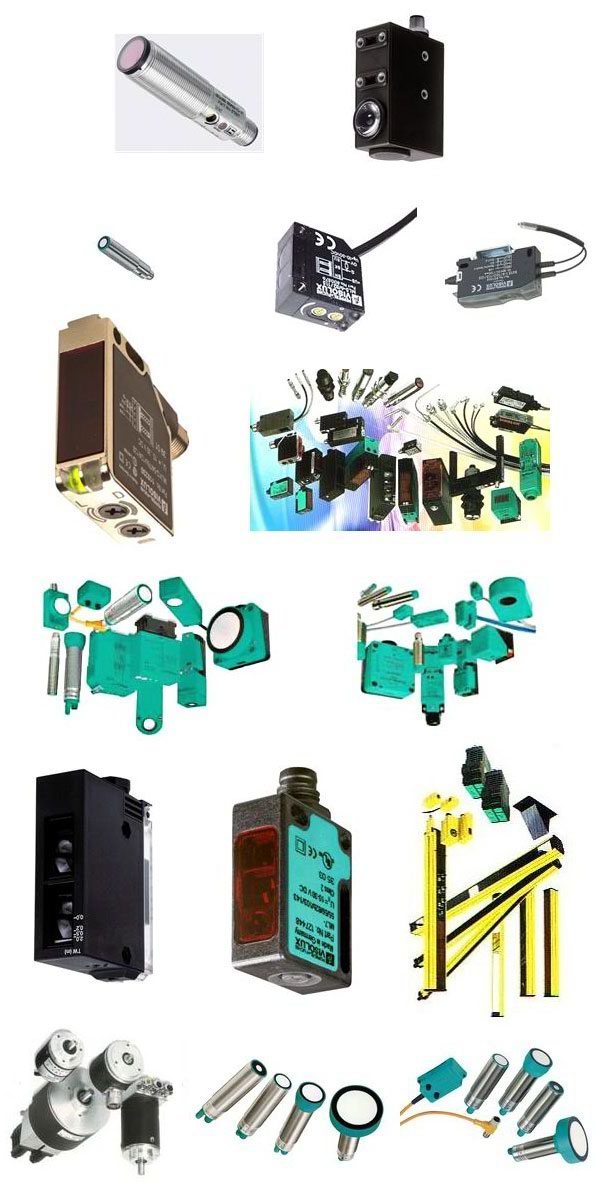

Sensors :

    Proximity Sensors:
           There are two types Inductive and Capacitive. Inductive sensors detect metallic objects at an operating distance of up to 50mm.

    Photoelectric Sensors:
            light-reflecting or opaque objects at an operating distance of 5 meters and more. They can also be used with fiber-optic cable for detection of extremely small objects.

    Ultrasonic sensors:
           Detect the position of objects with a sound-reflecting surface. They may be used at an operating distance of up to 6 meters.

    Optical Encoders:
           Multi-turn absolute 12,14,16 bit resolution shaft encoder for applications requiring measurement of long distances or a high word count.  Choice of code formats, driver options and rotation control.
    Incremental Multi-turn encoders with single ended/differential output from 100 ppm to 2500 ppm and 10,000 to 50,000 ppm bring multiplier interpolation techniques.

    The above can also be offered with hollow shaft.

    Pressure Transducers & Transmitters (Absolute, Gauge & Differential) :
           From very low pressure
           10 mm WC to very high pressure 1200 bar.

    Melt Pressure Transducers :
           For plastic process industries.

    Specialized Temperature Sensors & Transmitters (RTD, Thermocouples & Thermistors) :
           Temperature measurements ranging from cryogenic (-) 180ºC applications to very hightemperature like 1800ºC.

    Humidity Sensors & Transmitters :
            For Industrial, Chemical, Petro-chemical, Air Conditioning(HVAC) Green House and for high temperature ovens. Designed specifically for operating under 100% Rh wettable to operating temperatures up to 200º C.

    Flow Sensors & Transmitters :
           Turbine type, Vane type for liquid media and Thermal mass flowcontrollers for gas media.

    Load Cells & Torque Sensors with Transmitters :
            For applications in Weigh Bridges, UniversalTesting Machines and Platform Scales

    High Speed Data Acquisition System :
           Micro controller based Process Controller & Indicatorswith interface to PC and sub-systems.We have been catering products to various Defence applications and also to process industries.

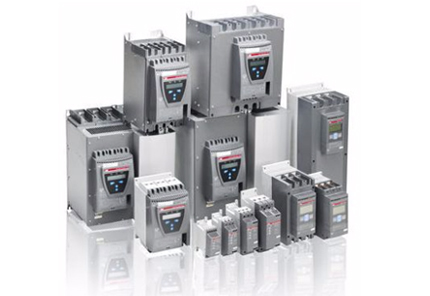

Soft Starters :

  • Soft Starters for 3-phase asynchronous motors from 0.1 KW to 560 kW along with control Panels for smooth start and stop for induction motors thereby increasing life of the machines with jerk-free starts and stops.

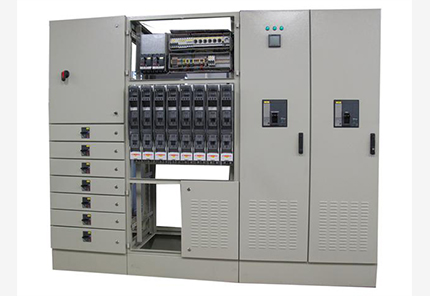

Lv Switchgears :

    Air Circuit breakers

    • Current Ratings : 10 A to 6300 A
    • Voltage ratings : 690 to 1000 VAC
    • 500 to 1000 VDC
    • Breaking capacities : 16 kA to 150 kA
    • Trip technologies :
                   01. Microprocessor based with different trip release options
                   02. Separate trip units for power distribution,
    • generator protection & motor protection.

    MCCBs
    • Current Ratings: 10 A to 1600 A
    • Voltage ratings: 690 to 1000 VAC, 500 to 1000 VDC
    • Breaking capacities: 16 kA to 85 kA
    • Trip technologies:
                   01. Thermo magnetic with options of fixed & adjustable setting
                   02. Microprocessor based with different trip release options
                   03. Separate trip units for power distribution & generator protection
    Contactors
    MCBs
    Thermal overload relays
    Motor Protection circuit breakers ( MPCB)
    Switch Fuse units
    Load break switches
    Change over switches

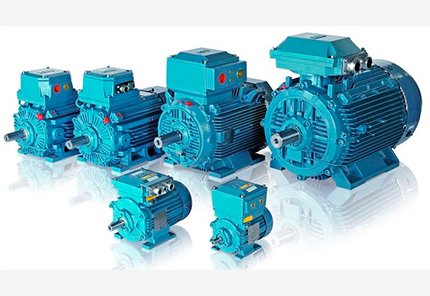

Motors :

  • FA offer unmatched quality & reliability, superior technology, faster delivery & above all “ Value“ for money.
    Features:
  • Heavy duty design
  • Unique polyamide based class 'F ' insulation.
  • Winding with high quality round enameled wires confirming to IS:13730 standards.
  • Optimally designed ventilation circuit on aerodynamic & acoustic considerations
  • Suitable for operation with variable frequency drives for a specified speed range requiring minimal changes.
  • Low noise levels
  • Ranges available :
  • Rating: 0.25 to 675 h Flame proof motors: 0.5 hp to 20 hp
  • No. of poles: 2 to 8
  • Frame size: 71 to 400
  • Duty : S1 to S8 according to IS:325 standards.
  • Enclosures: TEFC / TESC / SPDP
  • Degree of protection: IP55 / IP 56 ( TEFC/ TESC), IP23 ( SPDP)
  • Energy efficient motors
